TS9-00TWX
Item: LED Tact switch
Part Number:TS9-00TWX

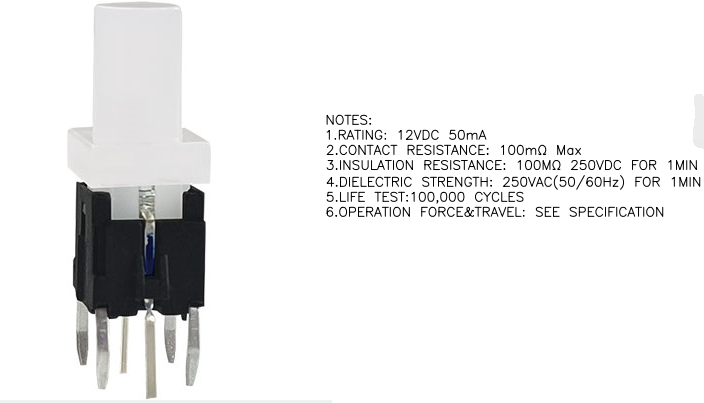

Specification:
Rating: 12VDC 50mA
Contact Resistance:100m? Max
Insulation Resistance:100m? 250VDC For 1MIN
Dielectric strength: 250VAC (50/60Hz) For 1 MIN
Operating Force: 250±50gf
Total Travel: 0.25±0.1mm
Operating Temperature：-20℃～70℃
Life Cycle: 100,000 Cycle
Function: Momentary
Application:
The light touch switch has the advantages of small contact resistance load, been widely used in electronic equipment, household appliances and so on.
Datasheet Download:
/upload/file/20240614/20240614144854_66850.pdf
